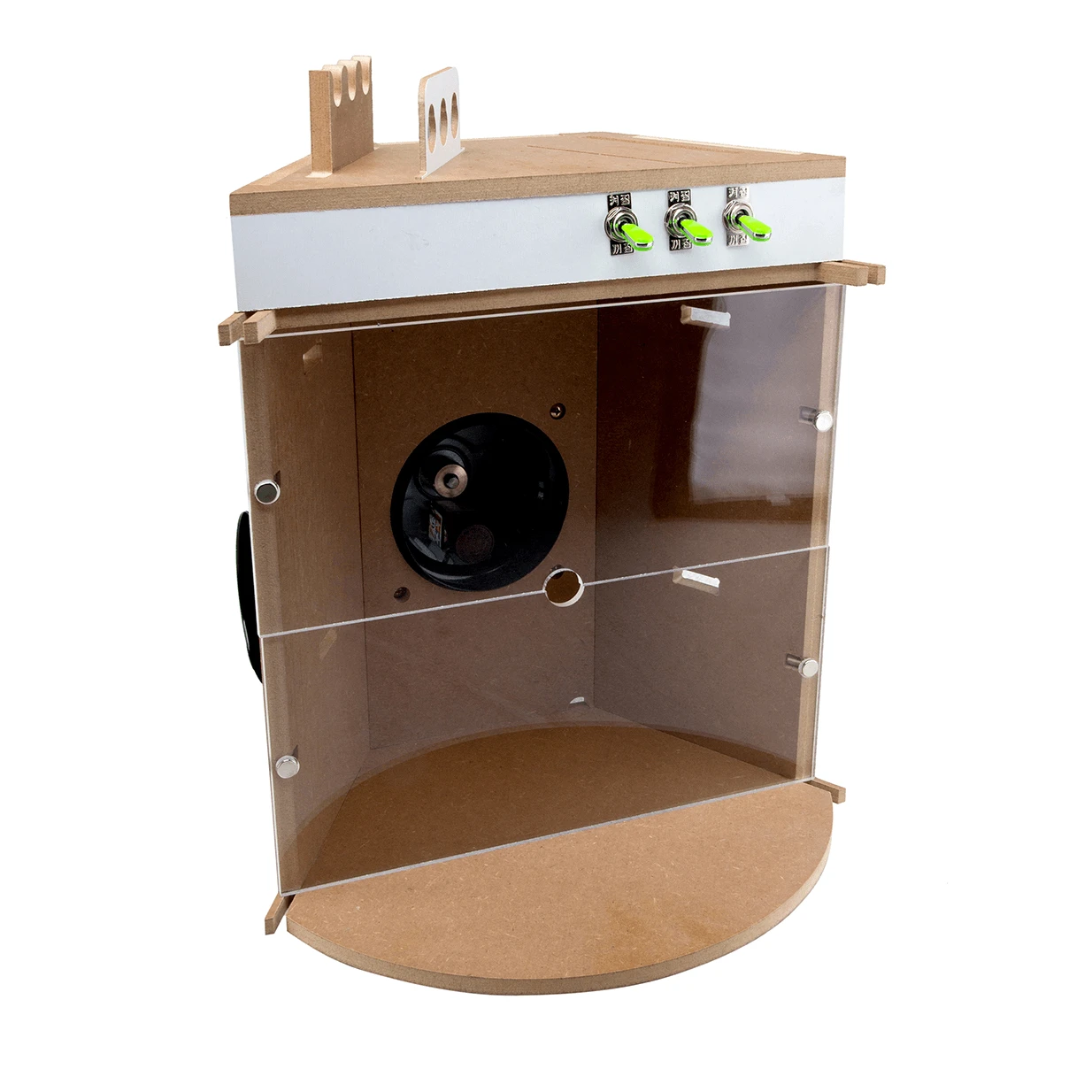

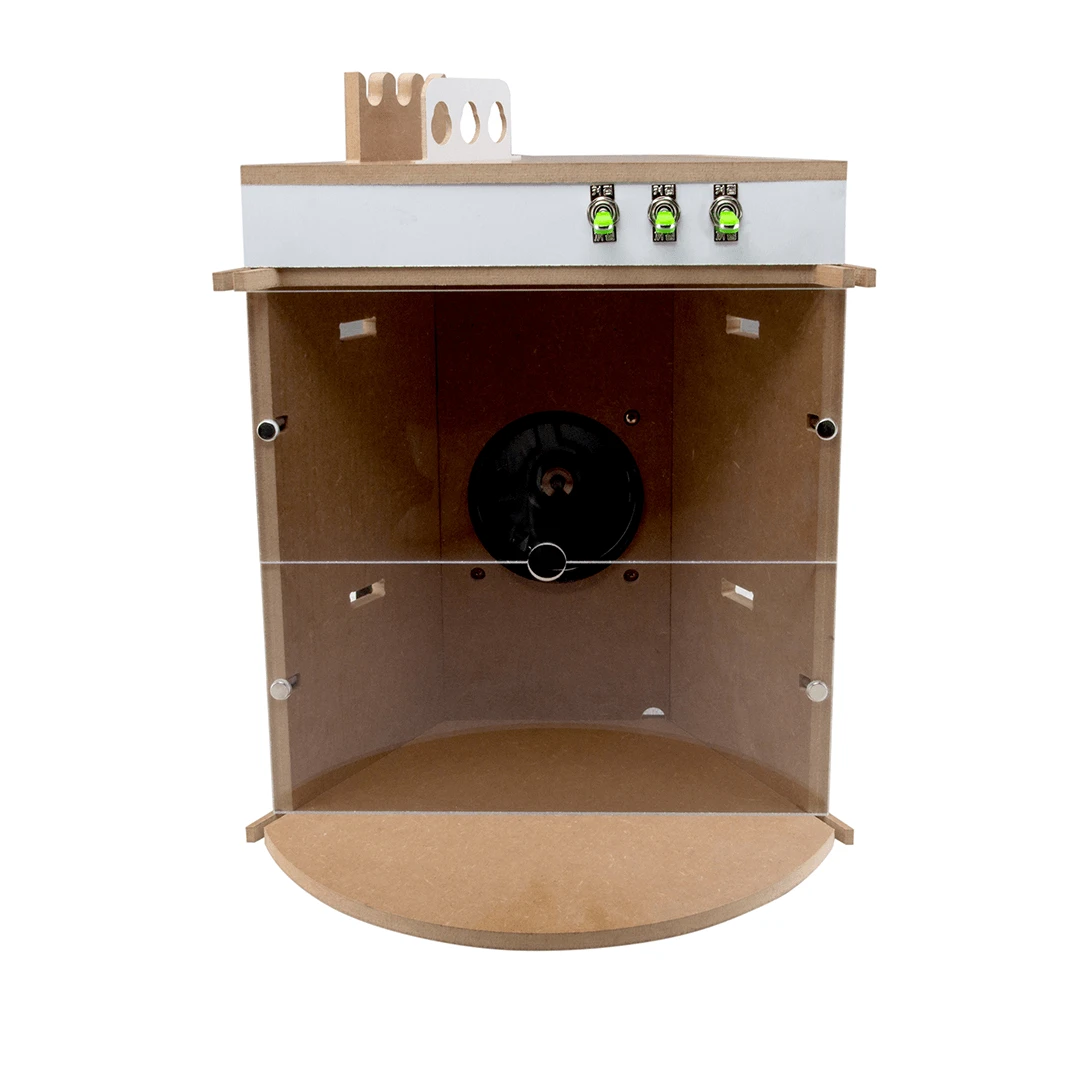

The OPERA spray booth,

Is a spray booth that’s compact, powerful, and affordable.
The powerful suction power of a 150mm exhaust fan, and the air chamber system, which evenly distributes the suction power across the back of the booth, thoroughly inhale all the paint being sprayed without any reflection or spillage,
and the anti-vortex system, which exists above and below the booth, completely controls and absorbs even the finest reflux of the injected paint.

150mm pro-performance blower fan can be attached

High performance blower fans of 150mm vent size are available.
All kinds of blower fans on the market can be connected because a pipe is directly attached instead of an exclusive blower fan.

How to Connect

• All sirocco/blower/regular fans of 150mm vent size are available
• The location of the blower fan can be located away from the spray booth, which greatly increases the workspace.

Powerful Performance

※ TESTED FAN MODEL : INOTECH TIS-160FS / Air flow : 900㎥/h

• Due to its unique design that prevents vortex, it allows inhaling all impurities.
• The stronger the fan, the performance of the spray booth unlimited increases.
• If the size of the pipes is changed through the reducer, blower fans of other sizes can also be used.

Compact size, but ample space for spraying!

You need the least amount of space on your desk compared to any other spray booth!
In a narrow workspace, the front/back depth of the booth is critical as well as the left/right and upper/lower sizes. OPERA Spray booth just requires a tiny fraction of your desk.

Despite its compact size, there is quite a lot of spray area available.
When attaching an acrylic cover (sold separately), a large injection area of approximately 40cm x 30cm in height can be obtained (if there is no acrylic cover, approximately 30cm x 30cm), which is the size that is sufficient to paint most common hobby model.

Upper/Lower Edge Inlet Port

When the paint is sprayed, the paint will bounce back without being inhaled when it meets the angular parts of the upper/lower edges.

ARTTYSTATION OPERA Spray Booth designs a separate inlet port at the top/lower edges to ensure that all paints are completely inhaled at any angle.

An anti-vortex system that prevents vortex of paint

In order to control the tiny splashes of the sprayed paint that has not been completely inhaled, the ARTTYSTATION OPERA Spray Booth provides a specially designed anti-vortex structure to fundamentally prevent vortex.

Completed with numerous tests, the anti-vortex structure is designed with the optimum angle and size to block the simultaneous vortex without disrupting the painting.

Air chamber that inhales evenly from all rear parts

Most conventional spray booths are concentrated around the inlet where the fan is installed. This results in paint dispensing in the corners of the booth being thrown back without proper inhalation.

The ARTTYSTATION OPERA Spray Booth introduces an Air chamber structure that creates a constant space between the blower fan inlet port and the rear of the booth, allowing even inhaling of the paint sprayed from the entire back of the spray booth.
(For full air chamber effect, an exclusive filter must be attached.)

Operating in conjunction with the upper/lower edge inlet port and anti-flow system, the air chamber system effectively controls all vortex and paint reflections that occur during painting.

The air chamber, which allows the entire rear part of the booth to be inhaled evenly,is an original structural design of ARTTYSTATION Spray Booth created through long-term research to realize the desired effect of the upper/lower edge inlet port and anti-vortex system.

＃Air Chamber Performance Test

※ TESTED BLOWER FAN MODEL : INOTECH TIS-160FS / Air flow : 900㎥/h

An exclusive filter that completely wraps around the booth

The ARTTYSTATION OPERA Spray Booth exclusive filtercovers the entire left/right/rear side of the spray booth at once.
Therefore, even if the inside of the booth is dirty, it can be cleaned simply by replacing the filter. (exclusive filter separately sold)

(Filter Size : width 385mm x height 280mm)

High-Quality Spray Booth Exclusive Filter

ARTTYSTATION Spray Booth exclusive filtersuse high-quality spray booth filters, and not just an ordinary non-woven fabric.
Using the BAF-300 product, a spray booth filter product from BNK KOREA, Korea’s top professional filter manufacturer, you can clean out toxic paint spray that can damage your health and use filters for a long period of time without compromising the filter’s performance.

＃ARTTYSTATION Spray Booth Filter Specifications

Convenient filter replacement with a magnet

The exclusive filter of the ARTTYSTATION OPERA Spray Booth is attached using the magnet attachment provided.

Even if the filter is dirty after a long period of use, you can change the filter very easily by simply removing the magnet attachment for a short time.

Air Brush Holder

The ARTTYSTATION OPERA Spray Booth can withstand up to two airbrushes on top.
The position of the airbrush holder can be moved left and right, depending on the position of the spray booth and the preference of the right/left-handed user.

Toggle Switch

The ARTTYSTATION OPERA Spray Booth provides room for installing toggle switches that can be DIYed to your liking. (Toggle Switch sold separately)
Users can use it more conveniently by plugging in various electronic devices used in the workspace.

For example, you can DIY the switch to suit your preferences, such as “Spray Booth Fan Power Button / Spray Booth Lighting Power Button/ Airbrush Compressor Power Button,” or “All Lights in Workspace Power Button / Spray Booth Fan & Compressor Power Button/ Dryer Power Button.”

Crocodile Clip Holder

At the top of the ARTTYSTATION OPERA Spray Booth, there is a crocodile clip holder that can pick up multiple crocodile clips.
After painting the parts, you can put the finished product on the crocodile clip holder and dry it right away, so the painting process is very convenient.

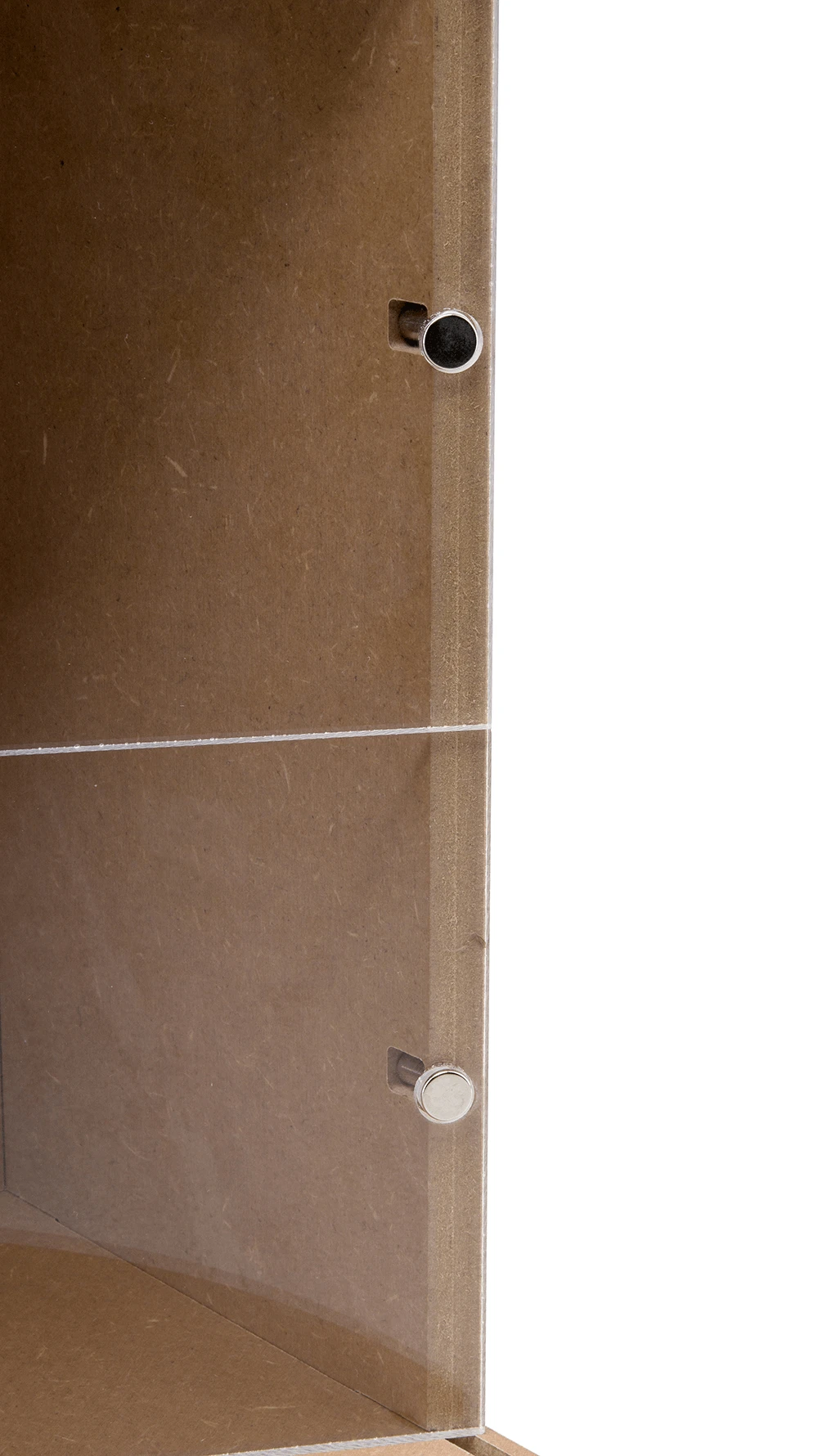

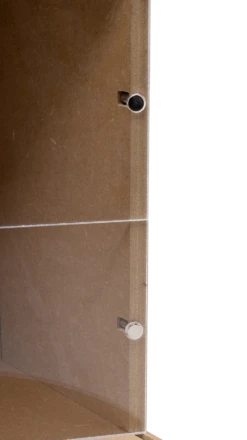

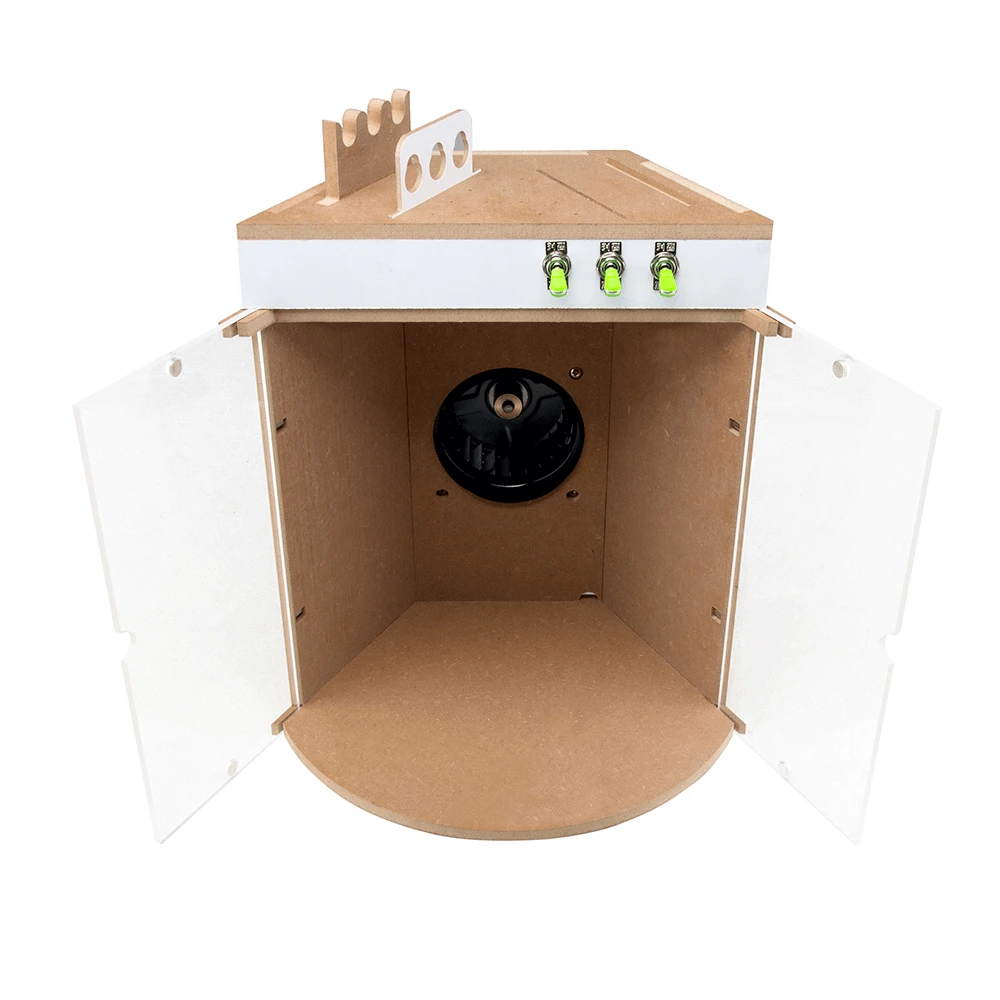

An acrylic cover that can be completely closed to block odor

The acrylic cover, which expands the spray space in the spray booth,is used to completely cover the front of the booth and block it from outside.
When the booth is closed with an acrylic cover after painting, it prevents dust from entering the booth and prevents the odor and dust from escaping into the room. (Acrylic cover sold separately)
